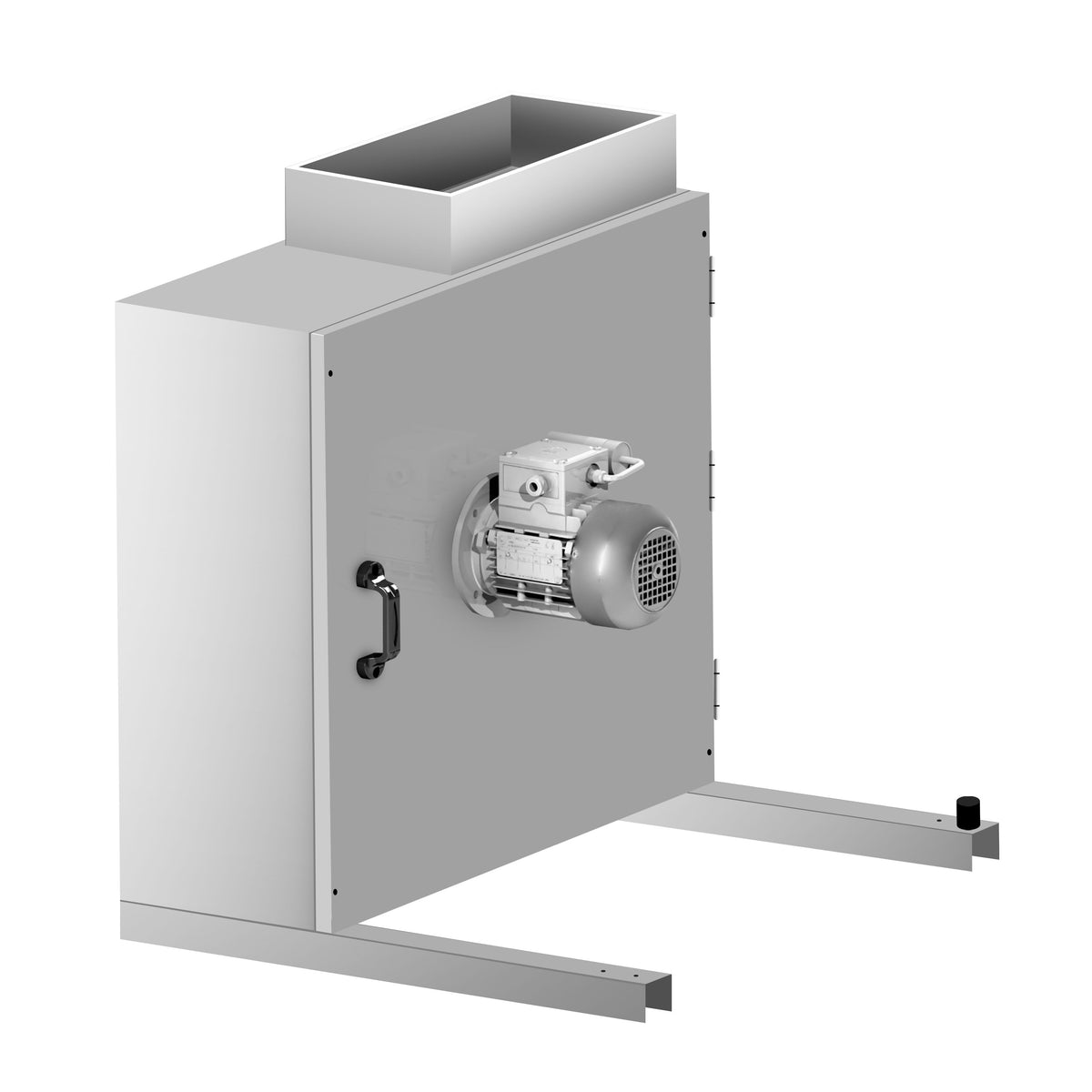

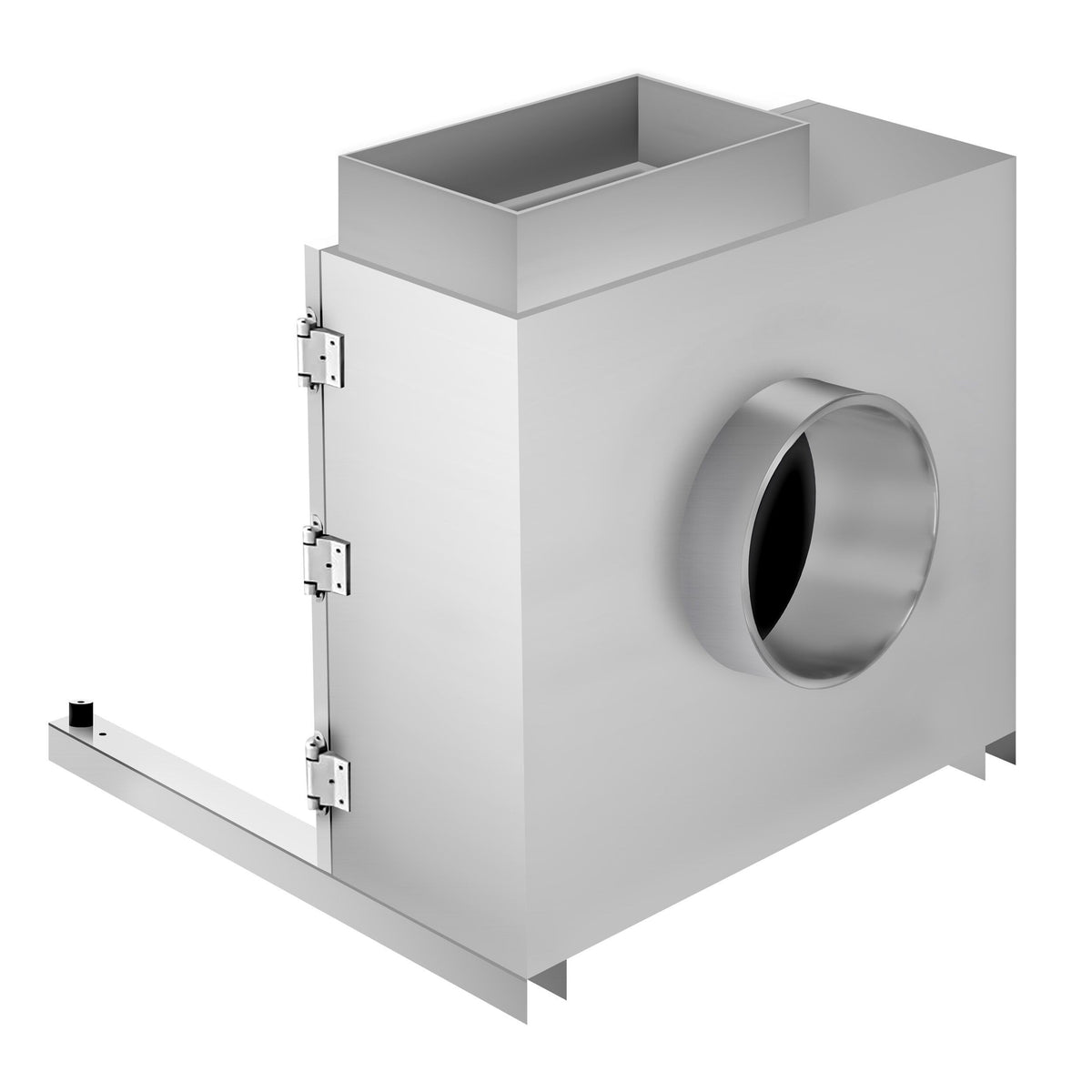

Designed for demanding environments and charcoal grill setups, this professional ventilation airbox delivers an air processing capacity of up to 4000 m³/h. Built with weather-resistant galvanized sheet steel and polyurethane rigid foam sandwich panels, it ensures superior heat and noise insulation while withstanding temperatures up to 110 °C.

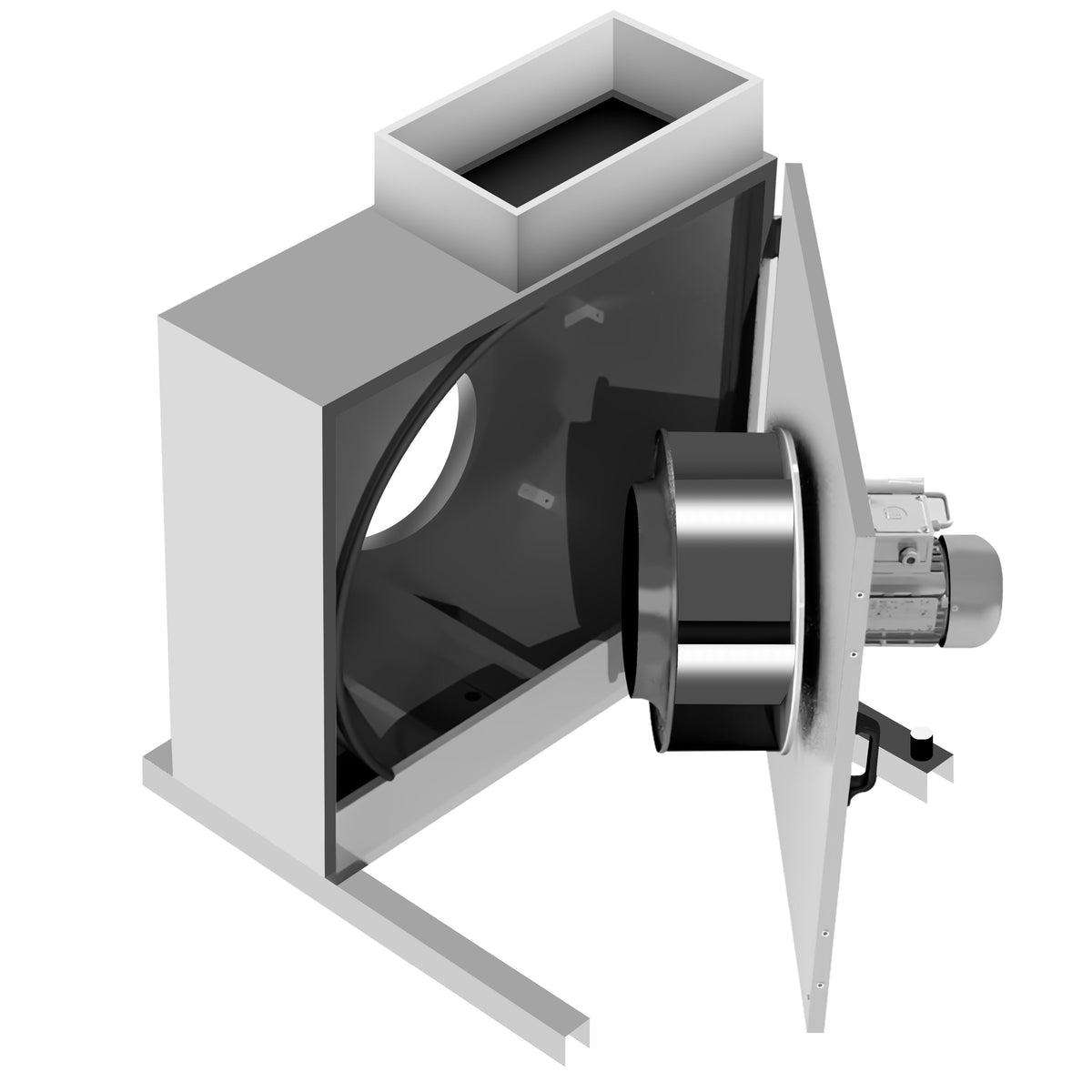

The system features a backward-curved centrifugal fan that provides reliable extraction with optimized energy consumption. For straightforward maintenance and hygiene, it includes a foldable service opening, a removable fan assembly, and a factory pre-installed grease drainage system.

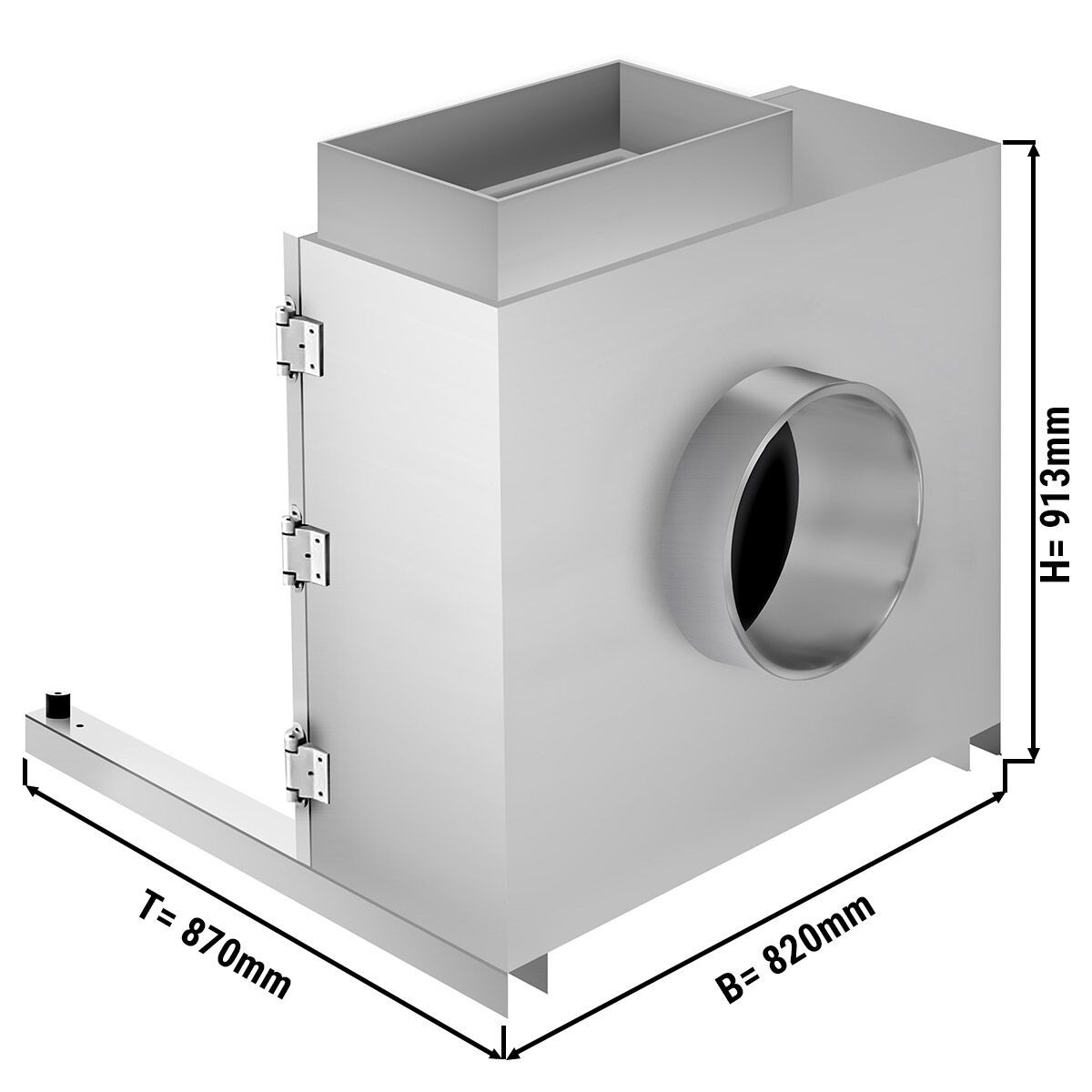

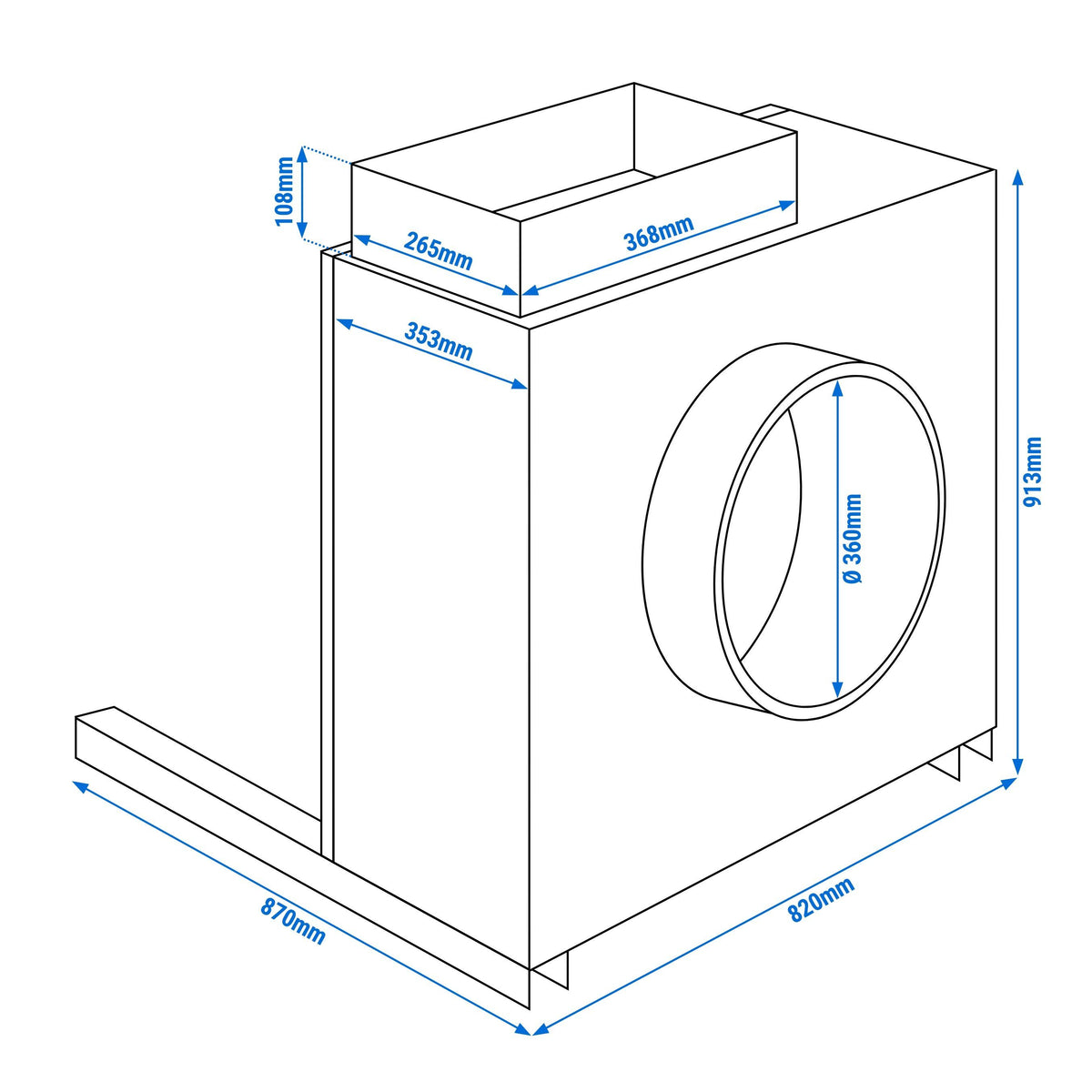

| Width | 820 mm |
| Depth | 870 mm |
| Height | 913 mm |
| Airflow Capacity | 4000 m³/h |
| Air Intake Connection Diameter | 360 mm |
| Medium Temperature Range | -20 °C to 110 °C |
| Power | 250 W |
| Voltage | 230 V |
| Phase | 1N~/PE |
| Frequency | 50 Hz |
| Product Weight | 98 kg |
| Material | Galvanized Steel |
| Insulation | Polyurethane Foam Sandwich Panels |
| Delivery Condition | Assembled |
